Reburbishment & Rebuild Services
Refurbishing and rebuilding can be a great way to retain the value of an item, reducing cost, down time, and waste generation. Products and assemblies that are expensive to make and replace can be good candidates for a refurbishment service.
A good refurbishment/rebuild service will return an item to like new condition. It can also be used as an opportunity to upgrade that product with higher quality materials or to incorporate improvements that can improve wear or accuracy, or even performance.
The examples we provide here are refurbishments services or rebuilds we offer to the semiconductor industry, however the concept could apply to products in any industry.
High Serviceability Refurbishment E500 Manipulator
P/N 55340
The Manipulator Assembly will be disassembled, cleaned and evaluated. A standard refurbishment requires separate purchase of K55340 kit, detailed below, and will replace all hardware, o-rings, gears, drive screws, clutches, slide and roller bearings, bellows and shaft. All hardware is upgraded. Roll pins are replaced with opposing lock screws. Potentiometers are upgraded with quick connect, high accuracy units. Quick connect terminals replace solder connections to simplify field service. Electrode is aligned and vacuum leak tested, and each drive is load tested for proper operation. Test reports will be provided. Drive motors (3 per assembly) are not included in the standard refurbishment. Existing motors will be used, unless new units are sent by the customer.

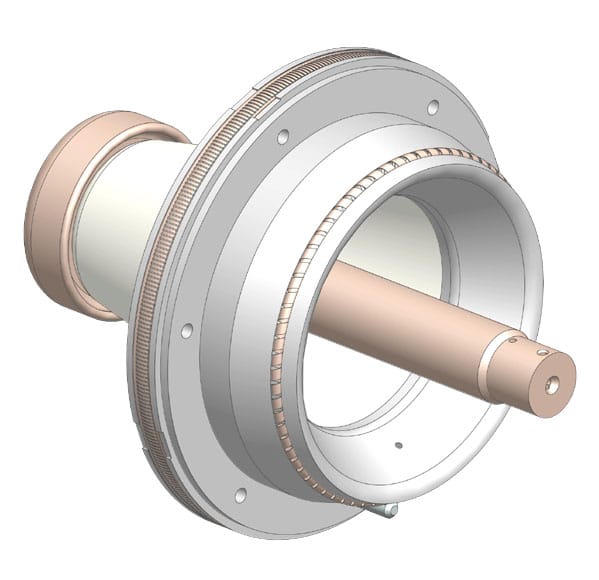

RF Cone Assembly Refurbishment Options
99780-S1R2 – No Hardware
- Unit is cleaned and decontaminated.
- New cone, new contact ring, and new EMI shielding are installed.
- All other parts are reused, electrode hardware not provided.
- Final leak check report provided.
99780-S1R3 – With Electrode Hardware
- Unit is cleaned and decontaminated.
- New cone, new contact ring, and new EMI shielding are installed.
- Electrode hardware is included and all other parts are reused.
- Final leak check report provided.

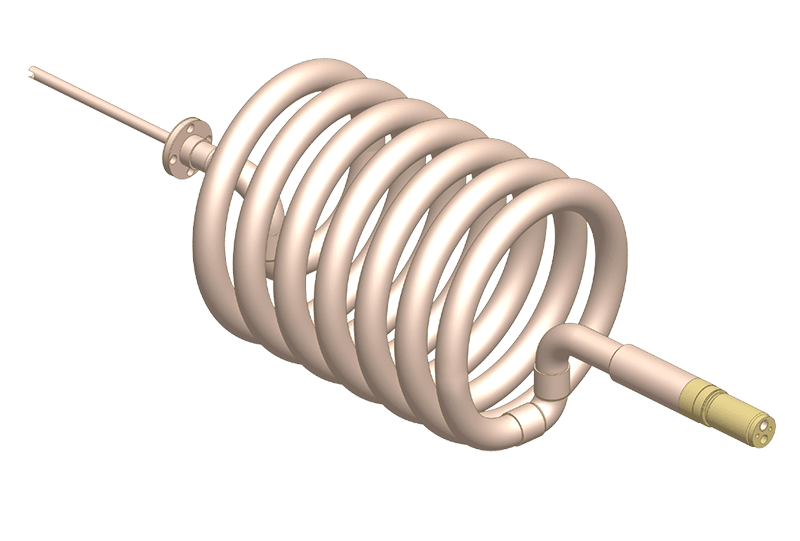

RF Coil Assembly Refurbishment
99780-S2R
Drive thread is replaced, coil pitch is corrected, and all surfaces are reconditioned to ensure RF continuity.
Moving Clips and Fixed Restraints for AMAT End Stations
We replace the pins, springs, bushings, bearings, and spacers.
-

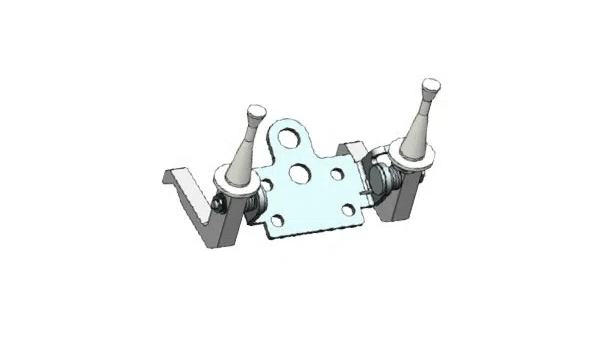

90268BPR
-

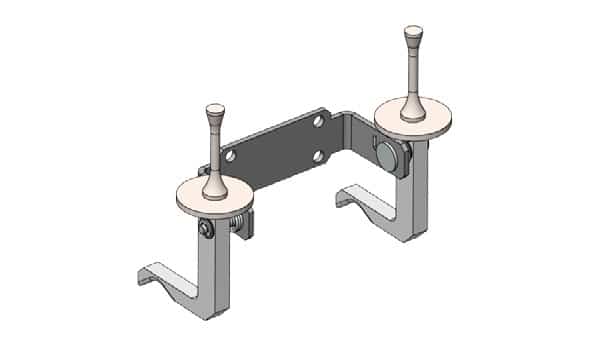

90268DR
-

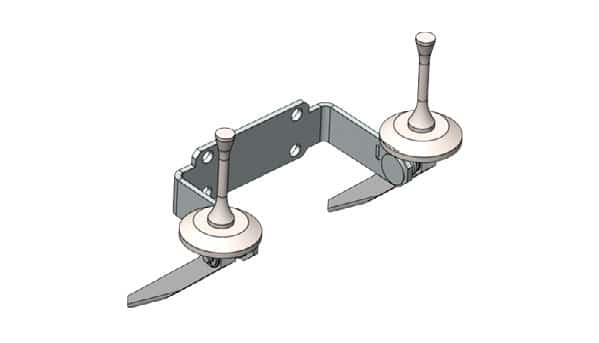

90268ER
